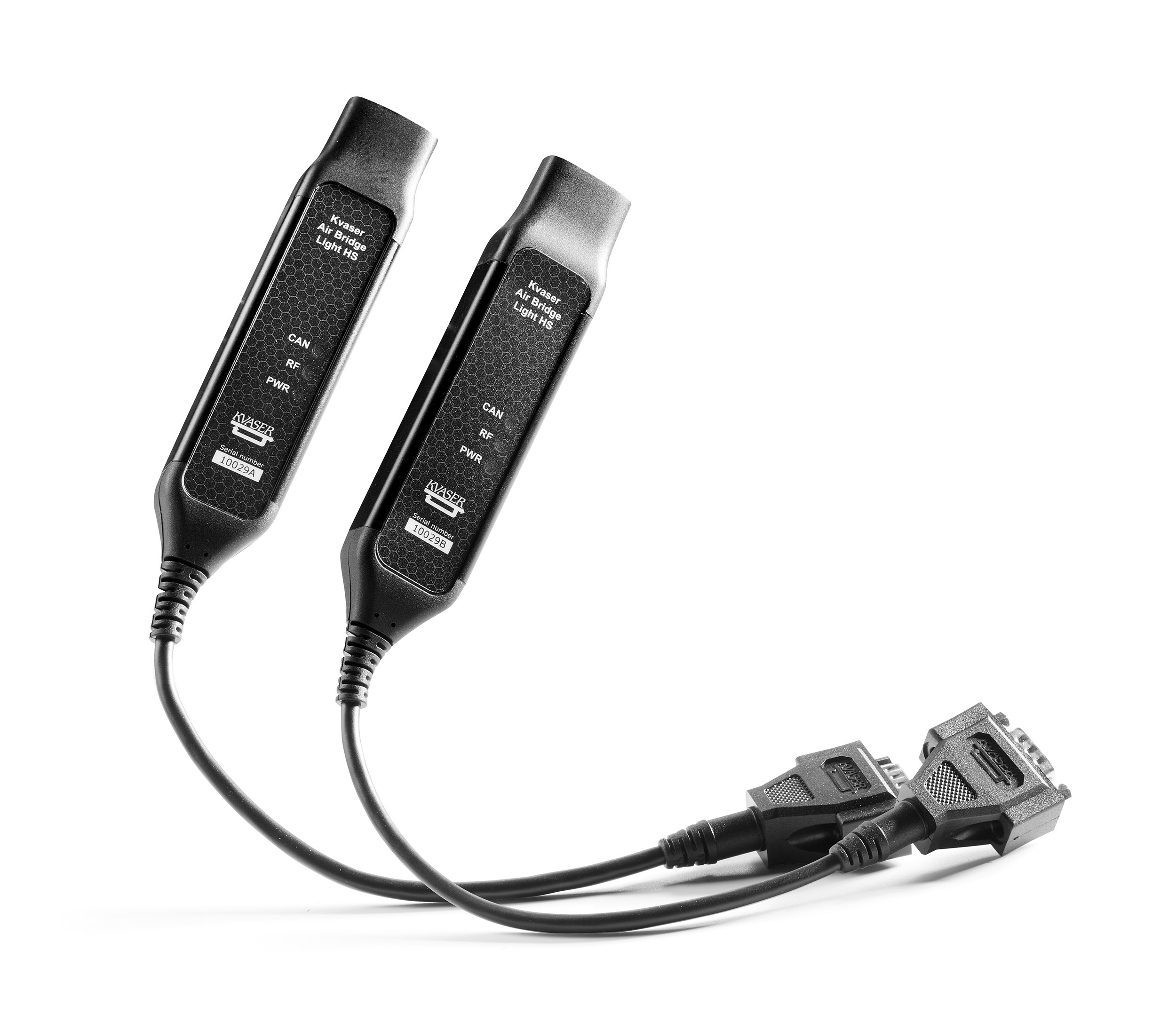

Kvaser Air Bridge Light HS Configuration-free wireless CAN bridge
Kvaser Air Bridge Light HS is a configuration-free wireless CAN bridge with uniquely low and predictable latency compared to other wireless technologies and a highly robust signal even at long range, thanks to a proprietary 2.4GHz wireless protocol based on frequency hopping and diversity.
Comprising a preconfigured pair of plug-and-play units, the Kvaser Air Bridge Light HS ensures the rapid exchange of CAN data in applications where a wired connection is unsuitable or challenging due to high environmental abrasion on cables and connectors.
Contains a set of 2 devices.
Major Features
- A preconfigured pair of units that acts as a wireless CAN bridge.
- Plug and Play, Driver Free and Configuration Free.
- Automatic Baudrate Detection (125K, 250K, 500K, 1M).
- Point to Point Radio Link.
- 2.4 GHz Proprietary Protocol.
- Internal Antenna Design, Antenna Output Power max 18 dBm approx.
- High-Speed CAN Connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
- Power Supplied through the CAN Bus Interface.
- Rugged Aluminum Housing.
